homeSAVOIA Renewable equipment


   Independent water , wind & solar powered systems for small towns, sawmills, weekend houses, communication remote stations, cathodic protection, etc. Integrated compound systems wind/solar/hydro-diesel up to 2500KW.

PV systems here! Wind turbines here!   Vacuum water heaters here!

Affordable standard AC 50/60Hz Hydroelectric MicroTurbines from 0.5 kw up to 30kw, here!

microhydroturbine with Turgo rotor

QS submersible turbine, AC 220V-50hz or 120V-60hz,  550Watt, for 1,5 a 3,2 m head

hydro axial                           QS Installation

 hydro NEW!! AXIAL type hydroturbines for low head 2-10m, up to 1.2 m3/s flow, for piping installation

      axial hydroturbines on
            piping setupaxial hydroturbine






  Ask details & prices by email:

email



dot For energy recovery in water networks: on-pipe Easy turbines

on
            pipe PAT hydro

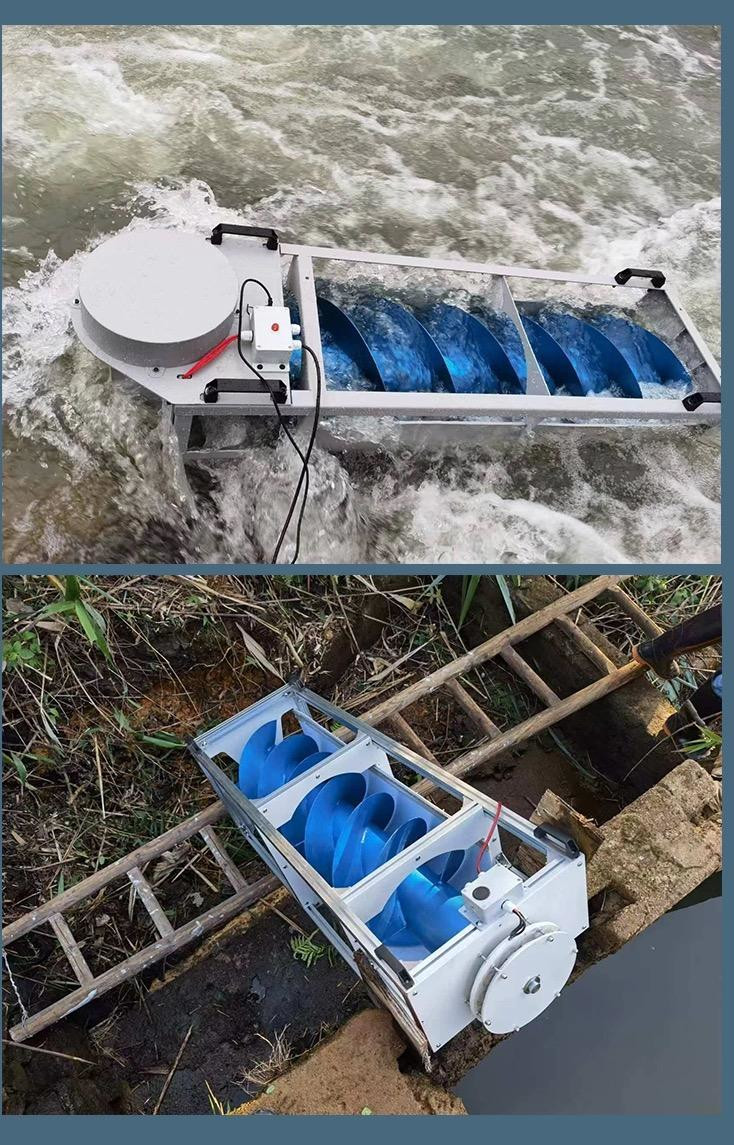

ARCHIMEDEAN screw type turbines from 1 meter head, up to 400 kw


ARQUIMEDES
              HYDRO                arquimedes
              sizing

** ADVANTAGES
- it is the affordable unit for low head and high flow sites
- the rotational speed can be easily increased or decreased depending on the flow rate
- very good tolerance to high debris
- the wide screws allow the fishes to pass downstream in relative safety
- simplified civil engineering works and foundations


DC Hydroelectric MicroTurbines

 "Stream Engine" machines with PMG alternators for battery charging 12-24VDC

POWER OUTPUT TABLE (WATT Continuous)

Head
m (Feet)

FLOW Litres/sec (Gallon/min)

minihydroelectric SE 1000W

0.67 (10)

1.33 (20)

2.5 (40)

5 (75)

6.67 (100)

7.5
(112)

9.5 (150)

3 (10)



20

50

90

120

130
 150

6 (20)

15

40

100

180

230

250

350

15 (50)

45

110

230

450

550

650

800

30 (100)

80

200

500

940

1000




60 (200)

150

400

900

1000

90 (295)
200
550
1200
120(394)
300
700
1500
150(422)
400
850
1900

email

dotdot  NO HEAD NEEDED! (on-stream kinetic hydroturbines)

dot NEW!! SHF (420mm diameter) to SHF8 (1835mm diameter) DUCTED axial turbines, to be placed submerged in plain rivers, irrigation and dam channels , with floating pontoons or a static bridge

    - Output Inverter Power: 0.6 kw to 8.0 kw, from 0.5 to 2.7 m/s stream speed

    - To increase installed power, several units can be placed, separated 15m each

    - Designed for battery charging, are able to store up to 190 kwh per day

    - Sine wave inverter output:
       * 1 kw, 220V-50hz or 110V-60hz, the P600
       * 10-30 kw, 3x380V/3x480V, the P8000

hydrokinetic
          turbine SH1 floating                     hydrokinetic 4 kw power curve


Hydrokinetcis with battery

email



*** FREE!! Download the Study of affordable hydro+battery systems to feed off-grid small villages
Flow type Iron-Iron long term
                      battery

                                               --> NEW!! Flow-type Iron-Iron batteries

 * the energy storage along the hours with low demand allows to cover power peaks

 * Packaged for 3Mw and 6-12 h energy storage, up to 20,000  operation
   cycles with no degradation, 25  years life, u
ltrasafe electrolyte, power
   inverter 50 or 60hz included
